SCAG

Freedom Z

SFZ-48H-24KT
Call for Pricing
Call for Pricing & Availability Request a Quote

Features

Key Features

  • Command perfection
  • Ogura PTO Clutch Brake
  • Easy Foot-Pedal Deck Lift
  • Contoured, Bolstered, High-Back Seat
  • Hydro-Gear ZT-2800 Transaxles
  • Low-Maintenance Mower Design
  • High-Strength Steel Frame
  • Powerful and Efficient Engine Options

Overview

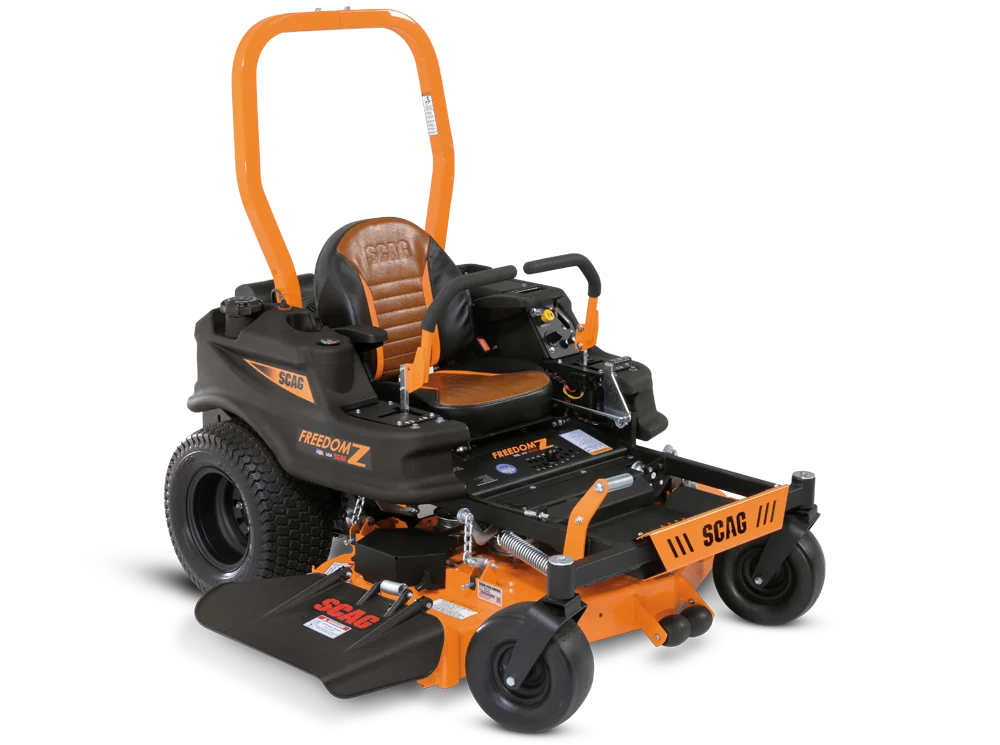

The Scag® Freedom Z® zero-turn riding lawn mowers with heavy-duty design and aluminum, sealed ball bearing, blade-drive spindles provide reliable performance.

Specifications

Total Fuel Capacity6.5 gallons
Drive Tires20 in x 10 in-10 in
Caster Tires11 in x 6 in-5 in
SeatPadded with arm rests, adjustment forward and back (tools required)
Drive System TypeHydro-Gear ZT2800 Transaxle
PumpsInternal Pump: 10 cc
MotorsInternal Motor: 16 cc
Forward Ground Speed8 mph
Reverse Ground Speed5 mph
Parking BrakeHand-activated lever
Cutting Widths48 in and 52 in
TypeHero Cutter Deck
Cutting Height1.5 in to 4.5 in in .25 in increments
Deck LiftFoot-operated pedal
ConstructionDual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
SpindlesAluminum housing with sealed ball bearings.
Blade EngagementOgura GT1 (74 ft lb) Adjustable air-gap for extended life.

Models & Configurations

ModelDeckEngineHP
SFZ-48H-24KT48 inKohler® 7000 Series24
SFZ-48H-24SR48 inScag SR Series24
SFZ-48H-25CX48 inBriggs & Stratton® CXi Series25
SFZ-48H-23FR48 inKawasaki® FR Series23
SFZ-52H-25CX52 inBriggs & Stratton® CXi Series25
SFZ-52H-26KT52 inKohler® 7000 Series26
SFZ-52H-24FR52 inKawasaki® FR Series24

Dimensions

48 in Freedom Z52 in Freedom Z
Length73 in73 in
Width (chute down)60.5 in64.5 in
Width (chute in transport position)49 in53 in
Height60 in60 in
Weight745 lb765 lb
