Overview

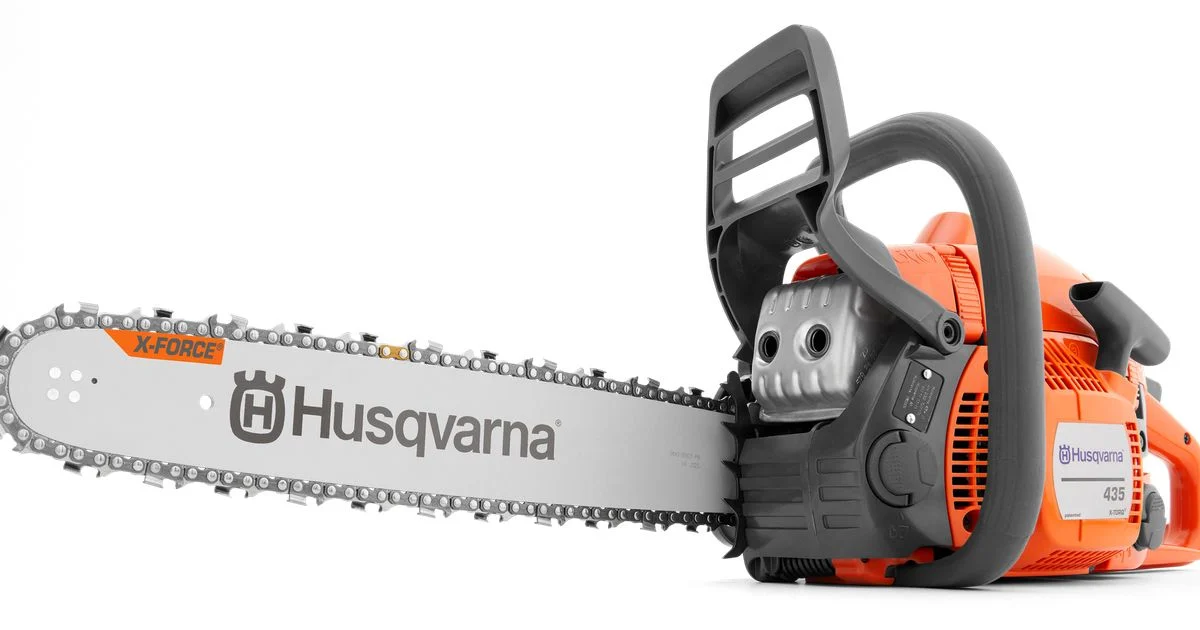

For quick and easy home maintenance, trust the Husqvarna 435.
Specifications
| Output shaft power 1 | 2.2 hp |
|---|---|
| Cylinder displacement | 40.9 cm³ |
| Torque, max. | 2 Nm |
| Torque, max. at rpm | 6,300 rpm |
| Chain speed at max power | 56.76 fts |
| Clutch engagement speed (±120) | 4,300 rpm |
| Electrode gap | 0.02 in |
| Idling speed | 2,900 rpm |
| Ignition module air gap | 0.01 in |
| Maximum power speed | 9,000 rpm |
| Oil pump type | Fixed flow |
| Spark Plug | Champion RCJ7Y, NGK BPMR7A |
| Recommended bar length, min | 13 in |
| Pitch | .325" |
| Recommended bar length, max | 18 in |
| Chain type | H30 |
| Bar length | 40 cm |
| Bar length (inch) | 16 in |
| Sprocket type | Spur 7 |
| Gauge | .050" |
| Weight (excl. cutting equipment) | 9.78 lbs |
| Sound pressure level at operators ear | 102 dB(A) |
| Sound power level, guaranteed (LWA) | 114 dB(A) |
| Sound power level, measured | 113 dB(A) |
| Equivalent vibration level (ahv, eq) rear handle | 3.8 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 3.1 m/s² |
| Oil tank volume | 0.53 US pint |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Exhaust emissions (CO₂ EU V) 2 | 813 g/kWh |
