SCAG

Industrial Skid-Mount

Call for Pricing
Call for Pricing & Availability Request a Quote

Features

Key Features

  • Powerful Engine
  • 4-Blade Impeller
  • Large-Capacity Fuel Tank With Built-In Gauge
  • Skid-Mount
  • 12" Steel Intake Nozzle
  • Ambidextrous Nozzle Handle
  • Locking Boom Arm and Intake Nozzle
  • Smart Construction and Convenient Serviceability

Overview

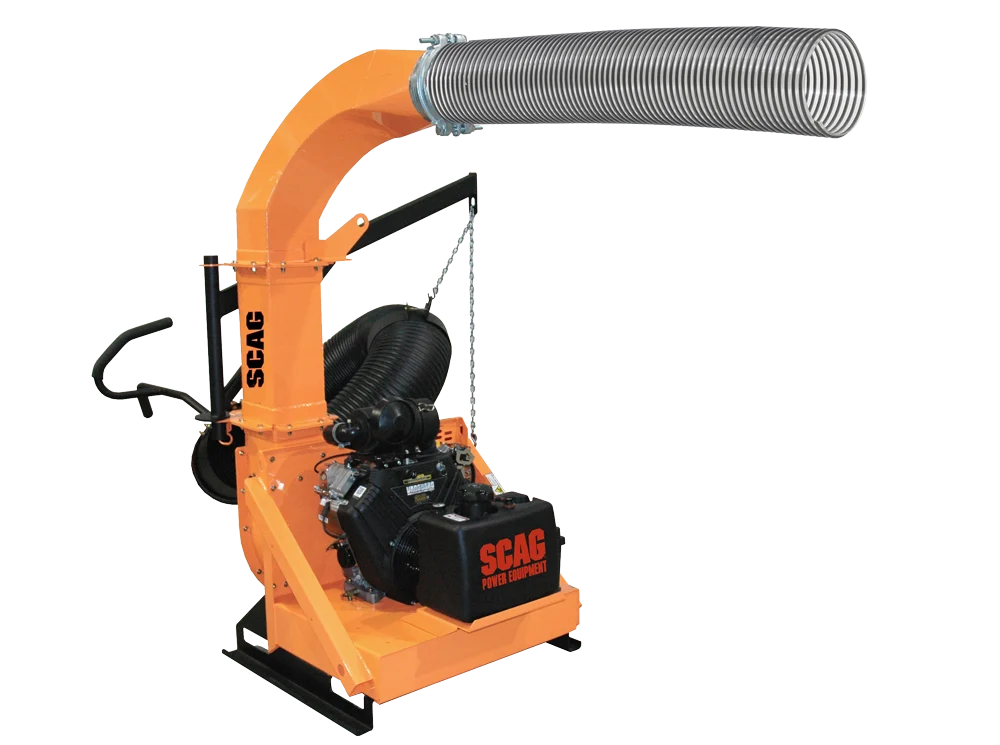

Dynamically balanced for reduced vibration, longer life and less stress on the engine, Scag® Industrial Skid-Mount Truck Loaders boast an effective design.

Specifications

ModelTLS20W-33BV
EngineBriggs & Stratton® Vanguard® BIG BLOCK, V-Twin, electric start
HP*33
Fuel Capacity / Tank5.5 gallons - plastic tank with built-in fuel gauge
CFM Output4,680
Frame ConstructionAll-steel, welded
Impeller Construction4-blade, 3/8 in-thick blades, all-steel, welded
Impeller MountingTapered locking hub
Impeller Diameter / Width20 in / 6.5 in
Blower Housing ConstructionRemovable back panel for easy impeller and wear plate access
Blower Housing Width7.5 in
Blower Housing Wear PlatesStandard: 1/4 in-steel, replaceable
Hose Specifications120 in length, 12 in-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Unit Mounting4 in steel skid risers
Discharge TubeClear thermoplastic, 8 in diameter
Throttle ControlCommercial-grade, all-steel mechanicals, plastic debris cover
Highway Readyn/a
Axlen/a
Tiresn/a
Trailer Widthn/a
Height75 in (without skid mount attached)
Weight675 lb
Warranty2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
MSRP$8,299
