Overview

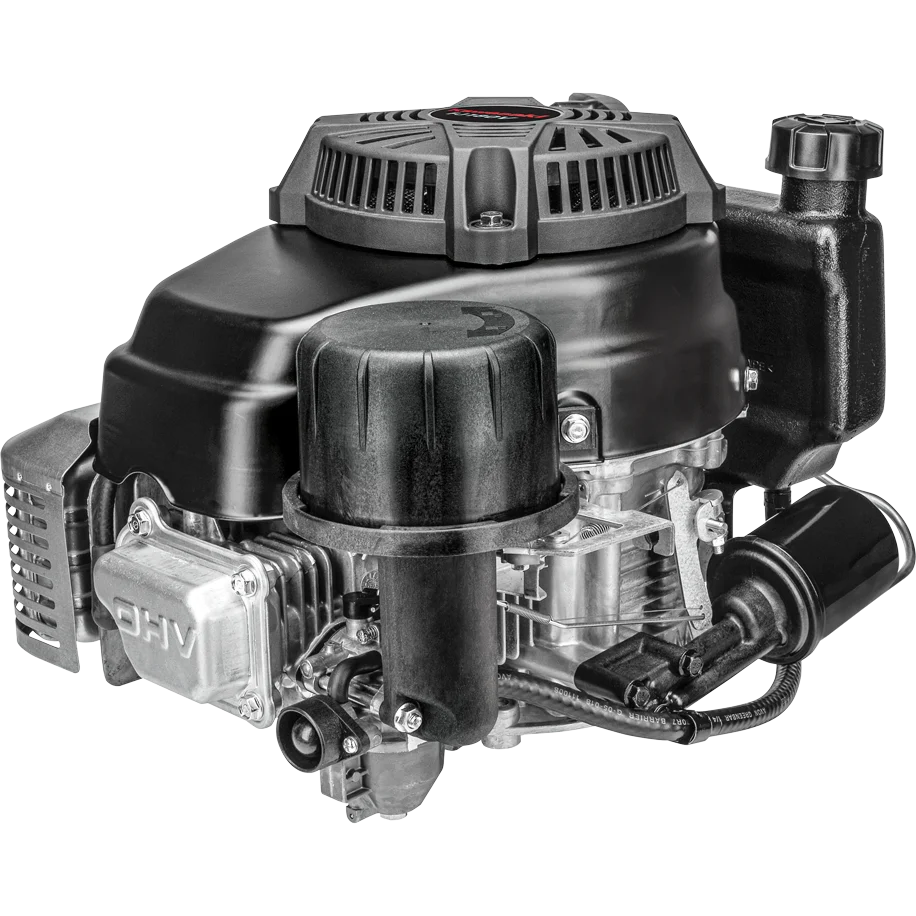

Single-cylinder air-cooled OHV engine used in pressure washers, pumps, generators, sod cutters, and small turf/utility equipment. Features a cast-iron cylinder liner, internally vented carburetor, and recoil starter with automatic compression release. Note: the current Kawasaki USA FJ180V KAI is a vertical-shaft engine.
Specifications
| Series | FJ Single-Cylinder |
|---|---|
| Displacement (cc) | 179 |
| Net Power (hp) | 4.5 @ 3600 rpm |
| Bore x Stroke (in) | 2.6 x 2.1 |
| Bore x Stroke (mm) | 65 x 54 |
| Compression Ratio | 8.5:1 |
| Oil Capacity (qt) | 0.6 |
| Cylinders | 1 |
| Starting System | Recoil (with automatic compression release) |
| Shaft Type | Vertical |
| Dry Weight (lb) | 37.5 |
