Overview

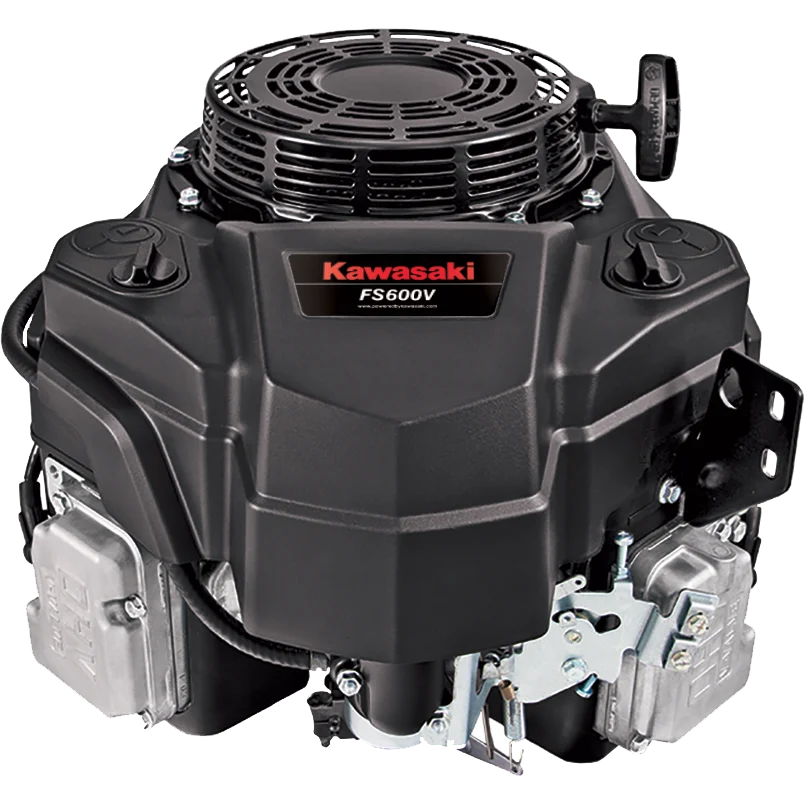

Commercial-grade air-cooled V-twin for commercial zero-turn and walk-behind mowers. Features overhead V-valves and a pressurized lubrication system with oil filter.
Specifications
| Series | FS Commercial V-Twin |
|---|---|
| Displacement (cc) | 603 |
| Net Power (hp) | 18.5 @ 3600 rpm |
| Max Torque (ft-lbs) | 32.3 @ 2200 rpm |
| Bore x Stroke (in) | 2.9 x 2.8 |
| Bore x Stroke (mm) | 73 x 72 |
| Compression Ratio | 8.1:1 |
| Oil Capacity w/ filter (qt) | 1.8 |
| Cylinders | 2 |
| Starting System | Electric (Bendix starter) |
| Shaft Type | Vertical |
| Dry Weight (lb) | 80.9 |
