Overview

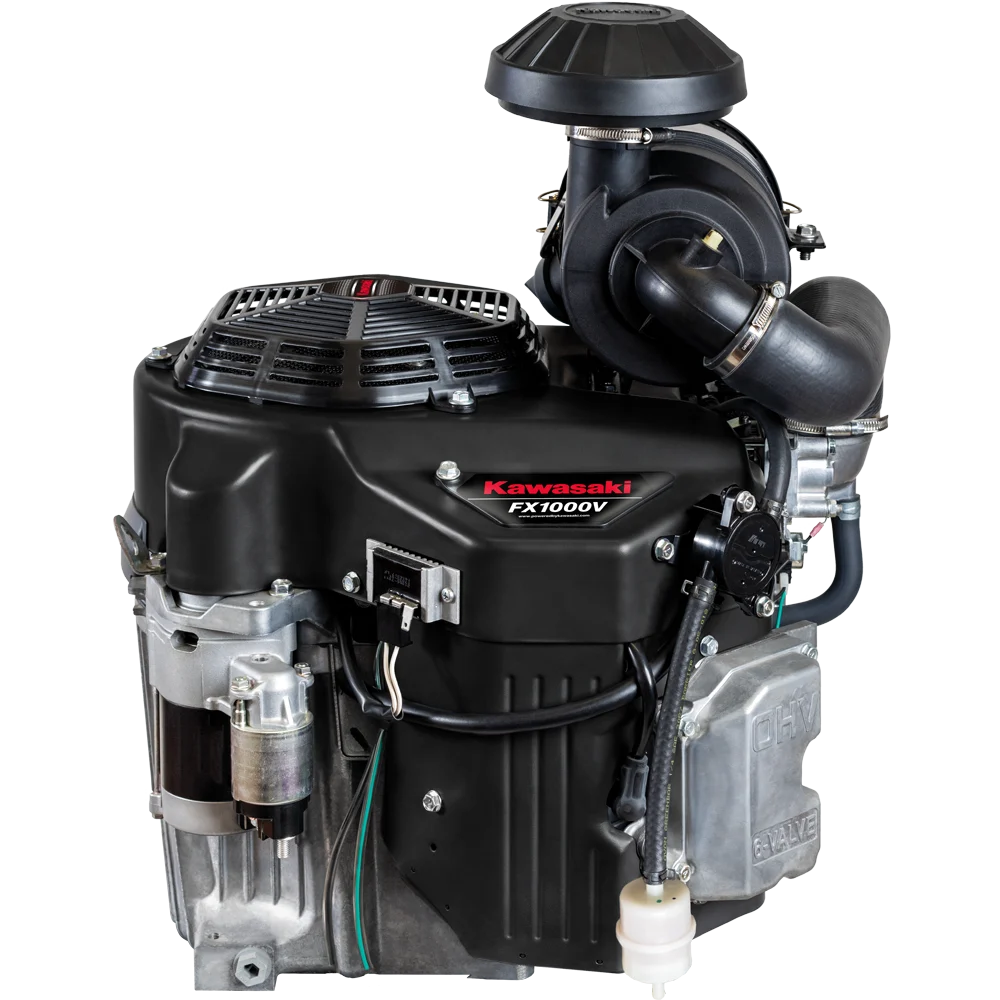

Top-of-the-line 999cc heavy-duty commercial air-cooled V-twin for the most demanding commercial mowers and heavy-duty industrial/construction applications. Features three valves per cylinder, a twin-barrel internally vented carburetor with fuel shut-off solenoid, and a shift-type starter.
Specifications
| Series | FX Heavy Commercial V-Twin |
|---|---|
| Displacement (cc) | 999 |
| Net Power (hp) | 35.0 @ 3600 rpm |
| Max Torque (ft-lbs) | 56.0 @ 2600 rpm |
| Bore x Stroke (in) | 3.5 x 3.15 |
| Bore x Stroke (mm) | 89.15 x 80 |
| Compression Ratio | 8.4:1 |
| Oil Capacity w/ filter (qt) | 2.0 |
| Cylinders | 2 |
| Valves per Cylinder | 3 |
| Starting System | Electric (heavy-duty shift-type starter) |
| Shaft Type | Vertical |
| Dry Weight (lb) | 138.0 |
You May Also Like
Engines

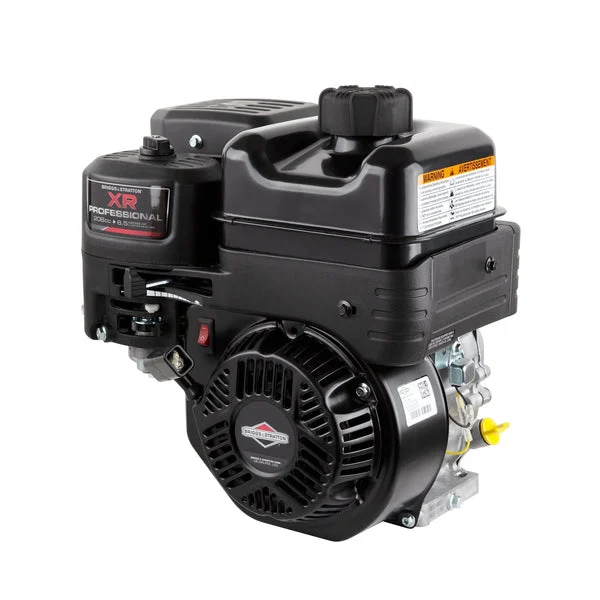

Briggs & Stratton XR Series 9.5 GT 208cc (XR950)
