Commercial Attachments
Features
Key Features
- MOW WITH EASE
- POWERFUL TRANSMISSION & ENGINE COMBO
- DISCHARGE - MULCH - BAG
- OVERSIZED ADJUSTABLE CONTROLS
- OPERATOR CONTROL PANEL
- SCAG LEVEL QUALITY-OF-CUT
- OFFSET BLADE SET UP
- SINGLE POINT HEIGHT-OF-CUT ADJUSTMENT
- FULLY FABRICATED AND WELDED STEEL FRAME
- FULLY FABRICATED AND WELDED STEEL CUTTER DECK
Overview

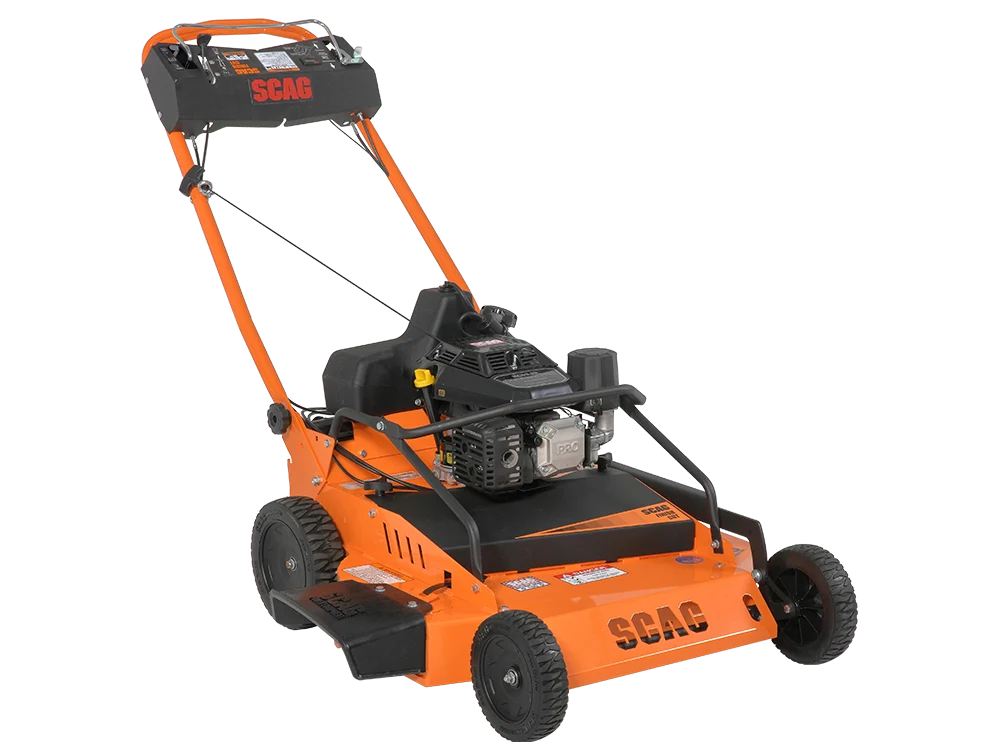

Scag® SFC-30 mower’s fully fabricated cutter deck and frame, single point height-of-cut adjustment & more make this machine a perfect tool for your lawn.
Specifications
| Total Fuel Capacity | 1 gallon (0.37 gallon capacity for California models) |
|---|---|
| Rear Tires | 10.5 in x 3 in rubber tire w/ glass-filled polypropylene wheel |
| Front Tires | 9" x 2.25" rubber tire w/ glass-filled polypropylene wheel |
| Drive System Type | GT MV 702 Transmission |
| Forward Ground Speed | Up to 4 mph |
| Parking Brake | Hand lever |
| Cutting Widths | 30 in |
| Type | Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup. |
| Cutting Height | 1.5 in to 5 in in .25 in increments. |
| Blade Type | Optimized for maximum performance whether discharging, mulching or bagging |
| Deck Lift | Hand lever. Single-point adjustment. |
| Construction | 14-gauge, grade 100, Military Grade steel deck shell with 12-gauge spindle reinforcement plate. ¼" trim side reinforcement bar offers extra protection against impacts. |
| Spindles | Aluminum housing with sealed ball bearings. |
| Blade Engagement | Blade brake clutch allows operator to disengage cutter blades without shutting off the machine. |
| Discharge, Mulch, Bag | Standard |
| Bag Capacity | 2.5 Bushels |
Models & Configurations
| Model | Deck | Engine | HP |
|---|---|---|---|
| SFC-30-7CV-S | 30 in | Kohler® Command PRO® CV224 - swivel front caster | 7 |
| SFC-30-7CV-S-CA | 30 in | Kohler® Command PRO® CV224 - swivel front caster (California) | 7 |
Dimensions
| SFC-30 | SFC-30 Swivel | |
|---|---|---|
| Length - Transport (handles in upright transport position) | 41 in | 44 in |
| Length - Minimum (handles in highest operating position) | 66 in | 69 in |
| Length - Max (handles in lowest operating position) | 73.5 in | 76.5 in |
| Tracking Width | 28.75 in | 28.75 in |
| Width (w/ discharge chute) | 36.75 in | 36.75 in |
| Width (w/ discharge block off plate) | 31.5 in | 31.5 in |
| Height - Lowest Operating | 36.75 in | 36.75 in |
| Height - Max Operating | 45.25 in | 45.25 in |
| Height - w/ Handle Bar in Storage Position | 57.5 in | 57.5 in |
| Operating Weight - Bagging | 220 lbs. | 233 lbs. |
| Operating Weight - Mulching | 214 lbs. | 227 lbs. |
| Operating Weight - Discharging | 213 lbs. | 226 lbs. |
