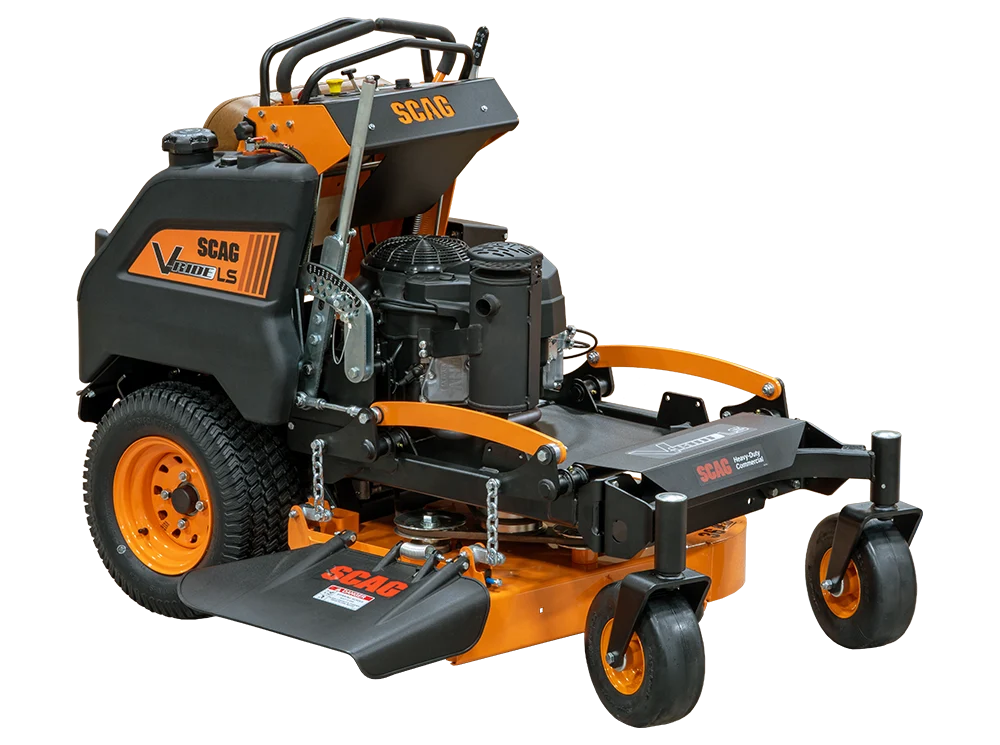

Name: V-Ride LS
Brand: SCAG
SKU: SVLS-36H-18FSE

Features

Overview

Scag® V-Ride LS stand-on zero-turn mower’s commercial-grade backbone and tough Scag construction fits perfectly into the existing product lineup.

Total Fuel Capacity	6.75 gallons
Drive Tires	20 in x 8 in-10 in four-ply pneumatic tubeless, radius edge
Caster Tires	11 in x 4 in-5 in run-flat semi-pneumatic
Seat	Extra-large comfort cushion
Drive System	Hydraulic drive with two integrated zero-turn transaxles
Transaxles	Hydro-Gear ZT-3100
Pumps	ZT3100 Internal Pump: 10 cc
Motors	Internal Motor: 12 cc
Forward Ground Speed	7 mph
Reverse Ground Speed	4 mph
Parking Brake	Hand lever
Cutting Widths	36 in, 42 in, 48 in, and 52 in
Type	Heavy-Duty Hero Cutter Deck
Cutting Height	1.5 in to 4.5 in in .25 in increments
Deck Lift	Hand lever
Construction	Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles	Heavy-duty spindle shaft, cast aluminum housing, sealed ball bearing, maintenance-free
Blade Engagement	Electric blade engagement clutch with control panel switch
Electric Clutch Type	Ogura Heavy Duty PTO Clutch Brake

Model	Deck	Engine	HP
SVLS-36H-18FSE	36 in	Kawasaki ® FS600V	18.5
SVLS-36H-20CX	36 in	Briggs & Stratton® CXi Series	20
SVLS-42H-18FSE	42 in	Kawasaki ® FS600V	18.5
SVLS-42H-20CX	42 in	Briggs & Stratton® CXi Series	20
SVLS-48H-22FSE	48 in	Kawasaki ® FS651V	22
SVLS-48H-25CX	48 in	Briggs & Stratton® CXi Series	25
SVLS-52H-22FSE	52 in	Kawasaki ® FS651V	22
SVLS-52H-25CX	52 in	Briggs & Stratton® CXi Series	25

	36 in V-Ride LS	42 in V-Ride LS	48 in V-Ride LS	52 in V-Ride LS
Length	65.25 in	65.25 in	65.25 in	65.25 in
Tracking Width	36 in	36 in	36 in	36 in
Width (chute down)	48 in	54.5 in	60.5 in	64.5 in
Width (chute in transport position)	37 in	43 in	49 in	53 in
Height	47 in	47 in	47 in	47 in
Weight	716 lbs	730 lbs	756 lbs	794 lbs
