SCAG

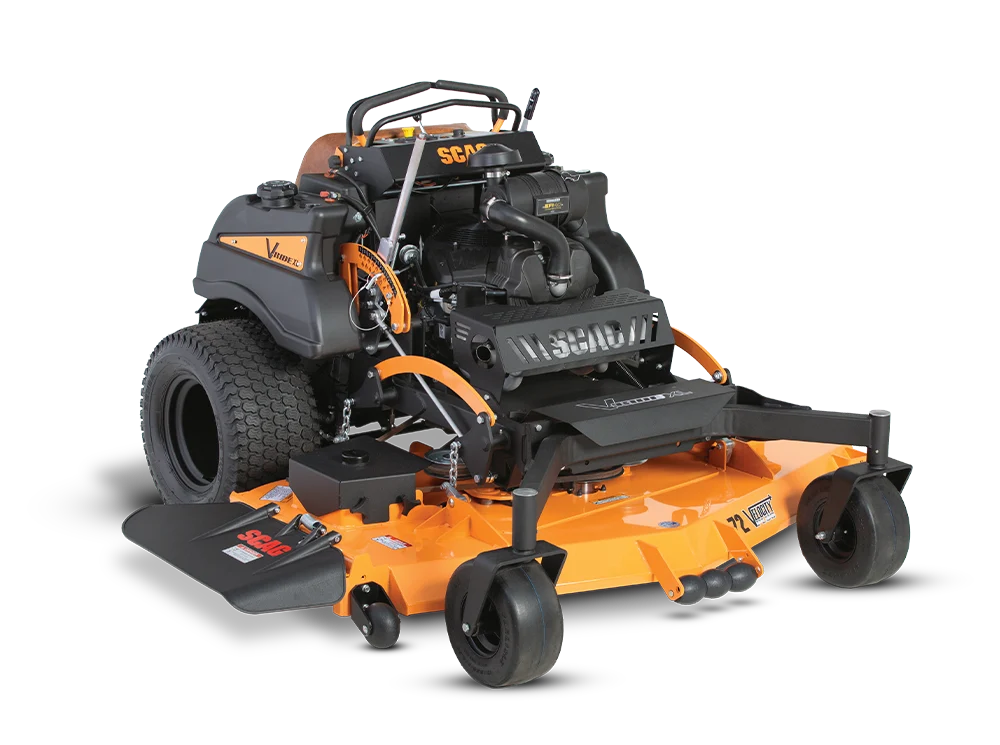

V-Ride XL

Call for Pricing
Call for Pricing & Availability Request a Quote

Features

Key Features

  • Powerful and Efficient Engine Options
  • Tiger Eye Advanced Monitoring System
  • Ease of Maintenance
  • Industrial-Grade Hydraulic System
  • High-Strength Steel Frame
  • Cutter-Deck Lift System
  • Adjustable Operator Platform
  • Ogura PTO Clutch Brake
  • Results That Will Make Your Competitors Jealous

Overview

The V-Ride XL proves that it’s possible to be tough as nails and soft as a cloud with its solid frame and adjustable suspension so you’re always riding in comfort.

Specifications

Total Fuel Capacity12 gallons
Drive Tires24 in x 9.5 in-12 in (52 in) 24 in x 12 in-12 in (61 in and 72 in)
Caster Tires13 in x 6.5 in-6 in
Drive System TypeDual Pump & Motor
PumpsHydro-Gear 16 cc
MotorsHydro-Gear 18 ci
Forward Ground SpeedUp to 11.6 mph
Reverse Ground Speed5 mph
Parking BrakeHand lever
Cutting Widths52 in, 61 in and 72 in
TypeVelocity Plus cutter deck
Cutting Height2 in to 6 in in .25 in increments
LiftHand lever
ConstructionTri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2 in of steel. Reinforcement plates at cutter deck spindles.
SpindlesCast-iron housing with tapered roller bearings
Blade EngagementOgura 3.5 (250 ft lb) Adjustable air-gap for extended life.

Dimensions

52 in V-Ride XL61 in V-Ride XL72 in V-Ride XL
Length70.5 in73.5 in76 in
Tracking Width51.5 in53.2 in53.2 in
Width (chute down)65.25 in73.5 in83 in
Width (chute in transport position)53.75 in62.75 in73.75 in
Height47.75 in47.75 in47.75 in
Weight1,150-1,179 lb1,201-1,266 lb1,264-1,293 lb
