Features
Key Features
- Command perfection
- Ogura PTO Clutch Brake
- Foot-Pedal Parking Brake
- Iso-Mounted Footplate
- Low-Maintenance Mower Design
- Hydro-Gear ZT-3100 / ZT-3400 Transaxles
- Suspension Seat
- High-Strength Steel Frame
- Powerful and Efficient Engine Options
Overview

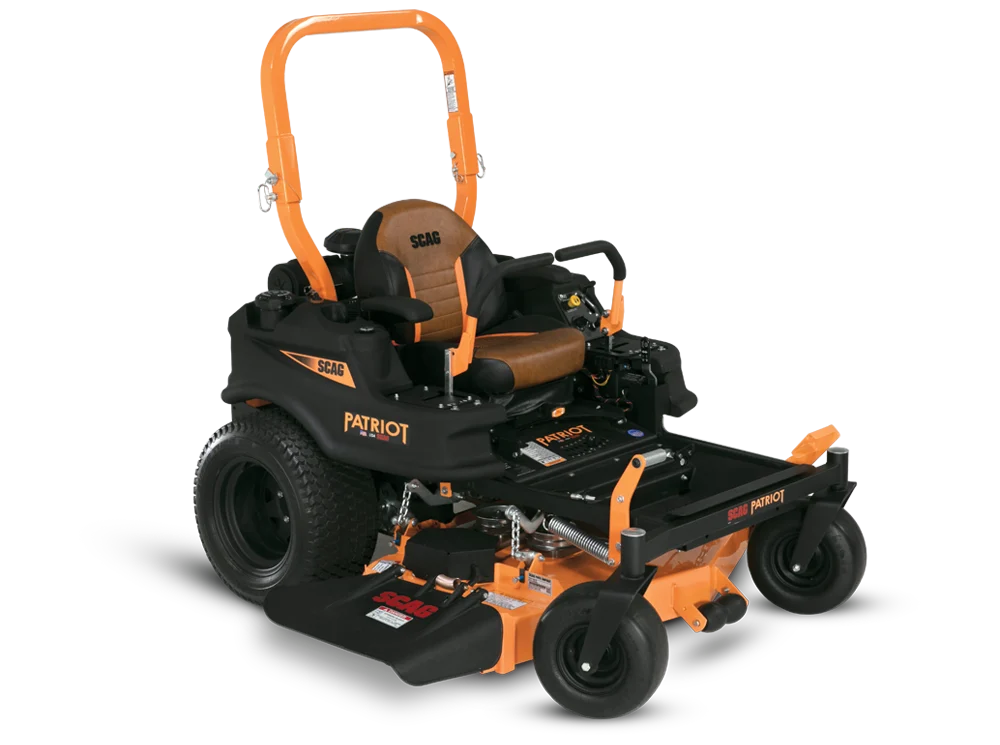

The Scag® Patriot zero-turn riding lawn mowers with heavy-duty design and aluminum, sealed ball bearing, blade-drive spindles provide reliable performance.
Specifications
| Total Fuel Capacity | 6.5 gallons |
|---|---|
| Drive Tires | 22 in x 10.5 in-12 in (52 in) 24 in x 12 in-12 in (61 in) |
| Caster Tires | 13 in x 6.5 in-6 in |
| Seat | Torsion-spring suspension seat |
| Drive System Type | Hydro-Gear ZT3100 Transaxle (52 in) Hydro-Gear ZT3400 Transaxle (61 in) |
| Pumps | ZT3100 Internal Pump: 10 cc (52 in) ZT3400 Internal Pump: 12 cc (61 in) |
| Motors | Internal Motor: 16 cc |
| Forward Ground Speed | 8.5 mph (52 in) 10 mph (61 in) |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Foot-operated pedal |
| Cutting Widths | 52 in and 61 in |
| Cutting Height | 1.5 in to 5 in in .25 in increments |
| Spindles | Aluminum housing with sealed ball bearings. |
| Construction | Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles. |
| Deck Lift | Foot-operated pedal |
| Type | Hero Cutter Deck |
| Blade Engagement | Ogura GT2 (108 ft lb) Adjustable air-gap for extended life. |
Models & Configurations
| Model | Deck | Engine | HP |
|---|---|---|---|
| SPZ-52H-22FX | 52 in | Kawasaki® FX Series | 22 |
| SPZ-52H-23CV | 52 in | Kohler® Command PRO® | 23 |
| SPZ-52H-24FT | 52 in | Kawasaki® FT Series | 24 |
| SPZ-52H-25ZT | 52 in | Kohler® Confidant | 25 |
| SPZ-52H-26BV | 52 in | Vanguard MID BLOCK | 26 |
| SPZ-52H-27CX | 52 in | Briggs & Stratton® CXi Series | 27 |
| SPZ-61H-23FX | 61 in | Kawasaki® FX Series | 23 |
| SPZ-61H-25ZT | 61 in | Kohler® Confidant | 25 |
| SPZ-61H-25CV | 61 in | Kohler® Command PRO® | 25 |
| SPZ-61H-26BV | 61 in | Vanguard MID BLOCK | 26 |
| SPZ-61H-27CX | 61 in | Briggs & Stratton® CXi Series | 27 |
Dimensions
| 52 in Patriot | 61 in Patriot | |
|---|---|---|
| Length | 73 in | 79 in |
| Width (chute down) | 64.5 in | 73.5 in |
| Width (chute in transport position) | 53 in | 62 in |
| Height (ROPS folded) | 46.5 in | 47 in |
| Height (ROPS up) | 61 in | 61 in |
| Weight | 907-911 lb | 952-956 lb |
You May Also Like
Parts & Accessories

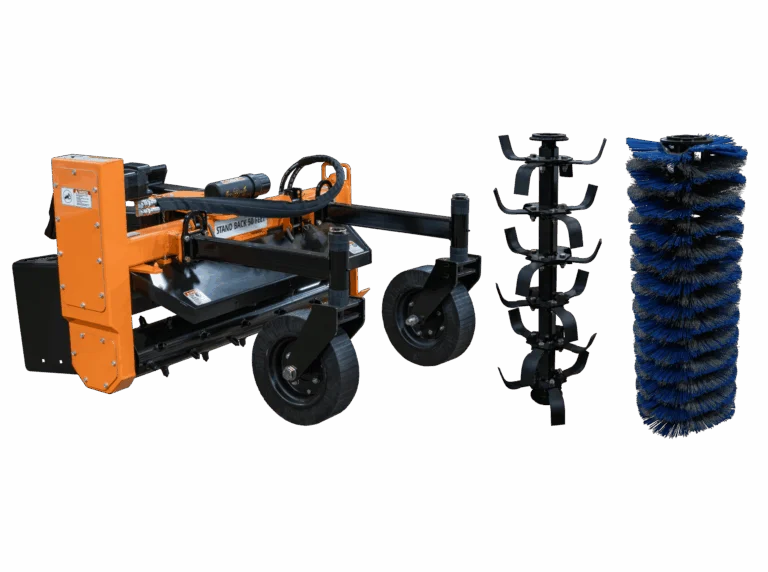

Power Box Rake
Commercial Attachments

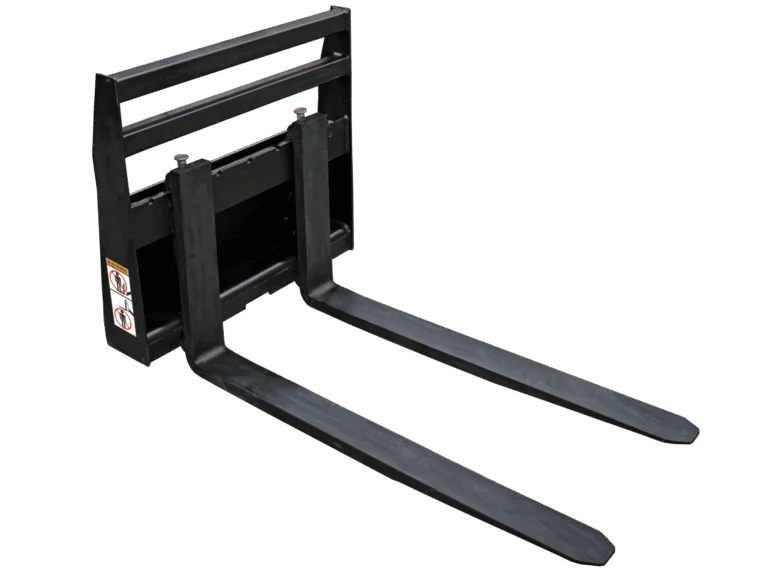

Pallet Forks
