Commercial Attachments
Features
Key Features
- The envy of the neighborhood
- Heavy-Duty, Double-Tube Steel Main Frame
- Powerful and Efficient Engine Options
- Huge 26" Drive Tires
- Tiger Eye Advanced Monitoring System
- Command-Comfort Operator Station
- Auxiliary Hydraulic Oil Cooler
- Industrial-Grade Hydraulic System
- Driveshaft-Driven Cutter Decks
Overview

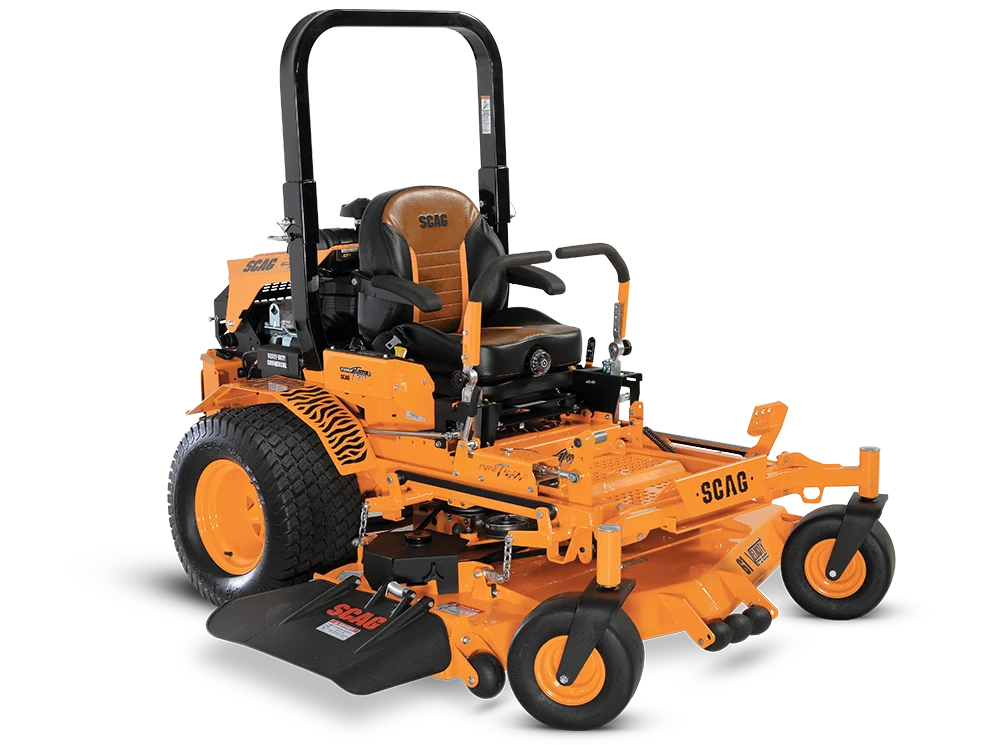

Scag® Turf Tiger II zero-turn riding lawn mower has replaceable front caster extensions, flat free caster tires with tapered roller bearings and more.
Specifications
| Total Fuel Capacity | 12 gallons (Gas/Diesel) 33.5 lb (LP) |
|---|---|
| Drive Tires | 26 in x 12 in-12 in (61 in and 72 in) 26 in x 9.5 in-12 in (52 in) |
| Caster Tires | 13 in x 6.5 in-6 in |
| Seat | 4-point iso-mounted torsion-spring suspension seat |
| Drive System Type | Dual Pump and Motor |
| Pumps | Hydro-Gear: 16 cc |
| Motors | Parker: 18 ci |
| Forward Ground Speed | 12 mph (Gas/LP) 10 mph (Diesel) |
| Reverse Ground Speed | 6 mph |
| Parking Brake | Adjustable foot-operated pedal. AUSCO disc brakes. |
| Cutting Widths | 52 in, 61 in and 72 in |
| Type | Velocity Plus |
| Cutting Height | 1.5 in to 6 in in .25 in increments |
| Deck Lift | Adjustable foot-operated pedal |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2 in of steel. Reinforcement plates at cutter deck spindles. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura GT3.5 (300 ft lb) Ogura GT5 (350 ft lb) (Briggs Models) Adjustable air-gap for extended life. |
Models & Configurations
| Model | Deck | Engine | HP |
|---|---|---|---|
| STTII-52V-26CH-EFI | 52 in | Kohler ® Command PRO ® EFI - electronic fuel injection | 26 |
| STTII-61V-31DFI | 61 in | Kawasaki ® FD Series DFI - digital fuel injected, liquid-cooled | 31 |
| STTII-61V-33BV | 61 in | Vanguard BIG BLOCK | 33 |
| STTII-61V-38CH-EFI | 61 in | Kohler ® Command PRO ® EFI - electronic fuel injection | 38 |
| STTII-61V-40BV-EFI | 61 in | Vanguard BIG BLOCK - electronic fuel injection | 40 |
| STTII-72V-31DFI | 72 in | Kawasaki ® FD Series DFI - digital fuel injected, liquid-cooled | 31 |
| STTII-72V-38CH-EFI | 72 in | Kohler ® Command PRO ® EFI - electronic fuel injection | 38 |
| STTII-72V-40BV-EFI | 72 in | Vanguard BIG BLOCK - electronic fuel injection | 40 |
| STTII-61V-25KBD | 61 in | Kubota ® - Diesel Powered, liquid-cooled | 25 |
| STTII-72V-25KBD | 72 in | Kubota ® - Diesel Powered, liquid-cooled | 25 |
| STTII-52V-25CH-LP-EFI | 52 in | Kohler ® Command PRO ® EFI - Propane Powered, electronic fuel injection | 25 |
| STTII-61V-25CH-LP-EFI | 61 in | Kohler ® Command PRO ® EFI - Propane Powered, electronic fuel injection | 25 |
Dimensions
| 52 in Turf Tiger Gas / Propane | 61 in Turf Tiger Gas / Propane / Diesel | 72 in Turf Tiger Gas / Diesel | |
|---|---|---|---|
| Length | 80.5 in | 85.5 in / 85.5 in / 88 in | 89.5 in / 92 in |
| Width (chute down) | 64.5 in | 73.5 in | 83 in |
| Width (chute in transport position) | 53.75 in | 62.75 in | 73.75 in |
| Height (ROPS down) | 46.5 in / 52.5 in | 46.5 in / 52.5 in / 46.5 in | 46.5 in |
| Height (ROPS up) | 68 in | 68 in | 68 in |
| Weight | 1,418 lb / 1,486 lb | 1,496-1,538 lb / 1,606 lb / 1,709 lb | 1,556 lb / 1,739 lb |
