Features
Key Features
- Compact Sizes: 36" and 42" deck models are narrow and nimble, ideal for small or precise properties like fitting through gates or maneuvering around flower beds with ease.
- Suspension Platform: Soft-riding suspension absorbs rebound energy to maximize comfort. Never requires lubrication or maintenance.
- Hydro-Gear Transmissions: Heavy-duty, commercial-grade transmissions deliver reliable speed and torque on demand for peak performance.
- Aero-Core Deck: Delivers premium cut quality, agile handling, and quick-access maintenance in a compact, commercial-grade design.
- Quick-Select Deck Height: Adjustable in 1/4" increments from 1.5" to 5.5" for precise cutting height control.
- Fully Floating Deck and Engine: By moving with the deck, the engine reduces excessive belt wear, ensuring consistent performance whether cutting Bermuda grass at 1.25" or St. Augustine grass at 5".
- 5.5-Gallon Fuel Tank: The 5.5-gallon fuel tank provides lasting performance for commercial jobs in tight, high-precision areas.
- Adjustable Deck Level: Easily fine-tune cut characteristics with quick adjustments for optimal deck leveling and performance.
- Sealed Caster Bearings: Designed to save time on maintenance by reducing the need for frequent lubrication and upkeep.
- Balanced Weight Positioning: The operator platform is strategically placed between the wheel motors, ensuring optimal balance and stability for the machine.
- Compact Commercial Casters: Compact caster placement reduces the need for trimming in tight areas, improving efficiency and maneuverability.
- Serrated Deck Edge: Designed to gather grass efficiently, maximizing cutting width for improved performance and precision.
Overview

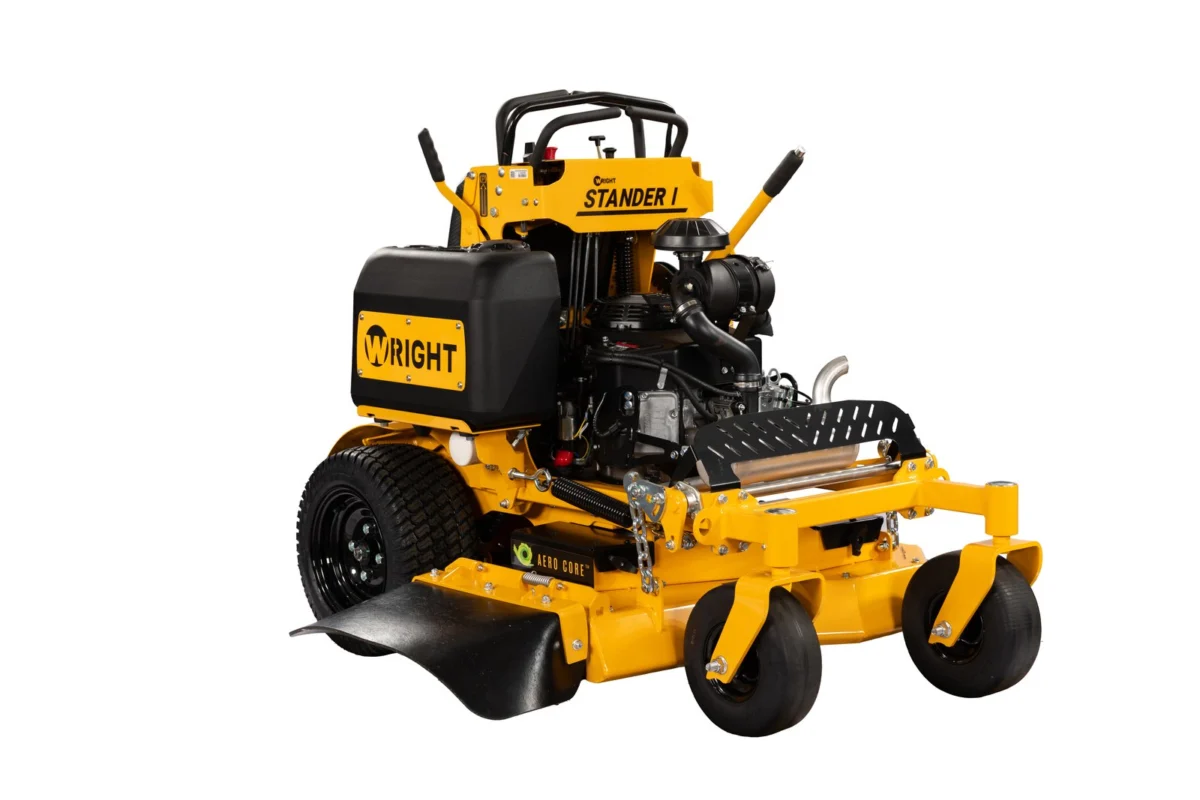

COMPACT. MANEUVERABLE. PRECISE. The STANDER I is a compact, heavy-duty commercial mower engineered for professional landscapers who demand power, agility, and precision in tight or gated spaces.. With a low center of gravity and wide wheelbase, it delivers confident stability and smooth handling across varied terrain, all in a narrow frame. The Hydro-Gear drive system supports a spacious operator platform, while the cushion reduces fatigue for all-day comfort. Whether you’re navigating complex properties or maximizing trailer space, the Stander Intensity brings unmatched versatility and performance to any commercial fleet.
Specifications
| Deck Size | 36 in / 42 in |
|---|---|
| Engine | Kawasaki FX600E |
| Horsepower | 19 HP |
| Blade Length | 18 in / 21 in |
| Blade Quantity | 2 |
| Deck Type | Floating-side discharge |
| Deck Lift System | Quick-Cut |
| Cut Height (min) | 1.5 in |
| Cut Height (max) | 5 in |
| Deck Steel Gauge | 7 Gauge |
| Spindle Type | Ductile Iron |
| Deck Configuration | Aero Core |
| Start Type | Electric |
| Fuel Capacity | 5.5 gal |
| Forward Speed | 8.2 mph |
| Reverse Speed | 3.5 mph |
| Max Acres Per Hour | 2.98 / 3.48 |
| Drive System | Hydro |
| Pump | Hydro-Gear 10 cc |
| Wheel Motor | Danfoss 12 cu in |
| Operator Controls | Quad Lever Ball Bearing |
| Hour Meter | Digital |
| Class | Heavy-duty |
| Generation | Gen 1 |
| Caster Tire Type | Flat Free |
| Caster Tire Diameter | 11.00 in |
| Caster Tire Width | 4.00 in |
| Caster Rim Diameter | 5.00 in |
| Drive Tire Diameter | 18.00 in |
| Drive Tire Width | 8.50 in |
| Drive Tire Ply | 4 ply |
| Drive Rim Diameter | 10.00 in |
Models & Configurations
| Model | Deck | Engine | HP |
|---|---|---|---|
| WSTN36SFX600E1B | 36 in | Kawasaki FX600E | 19 HP |
| WSTN42SFX600E1B | 42 in | Kawasaki FX600E | 19 HP |
Dimensions
| 36 in | 42 in | |
|---|---|---|
| Length | 62.00 in | 70.00 in |
| Width (deflector down) | 49.50 in | 55.00 in |
| Width (deflector up) | 36.50 in | 42.50 in |
| Weight | 717 lb | 740 lb |
